MC3246

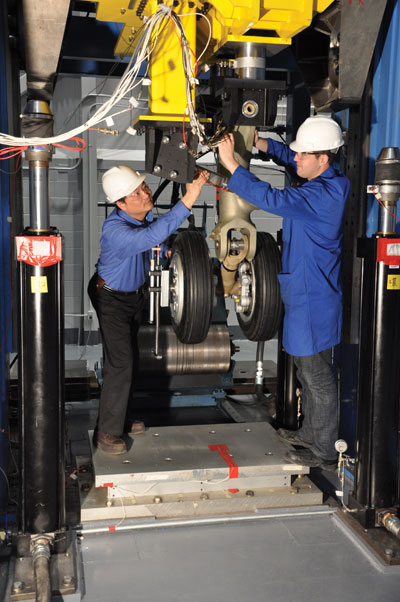

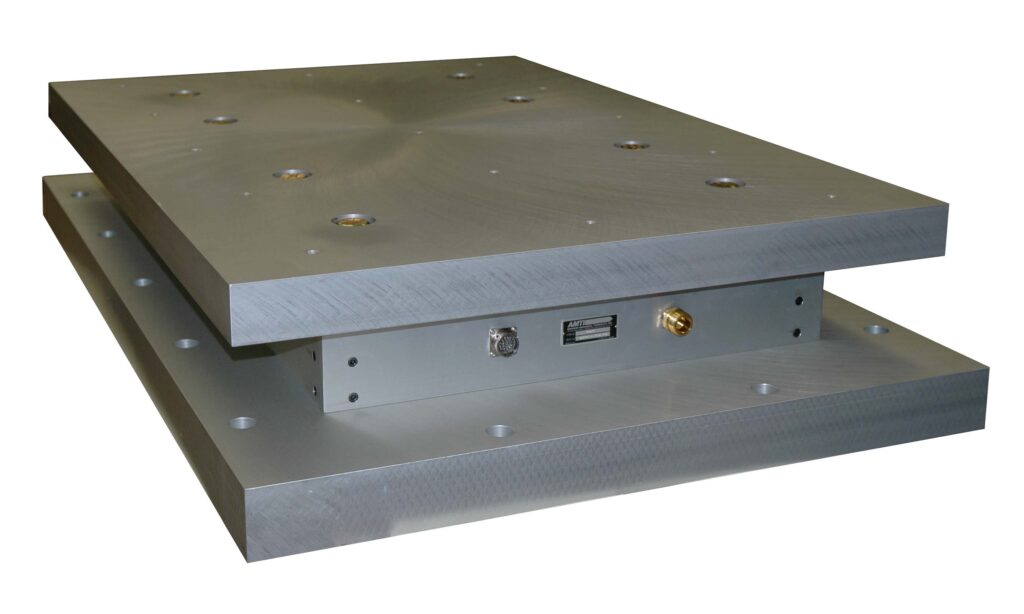

Offering a larger area than the MC3232, the MC3246 is a three-channel platform force sensor designed for drop testing of landing gear mechanisms. The top plate of this transducer is a relatively low mass, which yields high vertical and horizontal natural frequencies. This feature makes the MC3246 the perfect instrument for analyzing high speed impacts with elite accuracy.

The MC3246 has a 32 x 46 in. surface area and is available in 100,000, 150,000 and 200,000 lb vertical force capacities (see Specifications Tables). The resistive foil-type strain gages and 4-arm Wheatstone bridges optimize measurement accuracy within the 6061-T6 aluminum instrument body. An anodized finish provides further protection from environmental and industrial conditions.

This sensor also includes hold-down mounting holds on the top and bottom surfaces, yielding maximum stiffness while minimizing inherent crosstalk and excessive zero shift.

See the below for more details.

Complete your system with our state-of-the-art Gen-5 amplifier

AMTI's Gen-5 signal conditioner (amplifier) features advanced functionality and built-in digitization to provide you with a powerful and flexible system. Connect to your PC and start collecting data straight out of the box.
Learn More
System Information

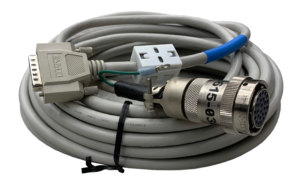

AMTI's industrial sensors can be paired with optional components to create a complete system.

Specifications & Details

Review detailed force transducer specifications and model versions below.

Technical Drawings
