MC3232

This platform-type force transducer is the most popular sensor for measuring aircraft landing gear tire impact forces. Featuring a 50,000 lb vertical force capacity, the MC3232 is manufactured from high strength aluminum with an anodized finish. This rugged transducer is smaller than the MC3246, measuring 32 x 32 x 9.5 in.

Request a Quote

The MC3232 is equipped with 9 mounting holes on its top surface, and 8 hold-down holes on the base. When mounted, the MC3232 yields minimal zero shift and maximum stiffness for optimal measurement analysis. The sensing elements in this sensor use resistive foil-type strain gages and independent four arm Wheatstone bridges to provide the 6 outputs with low inherent crosstalk. A closed cell PVC foam strip is also included for splash-proof and dirt protection.

See the Specifications Tables below for more details.

Complete your system with our state-of-the-art Gen-5 amplifier

AMTI's Gen-5 signal conditioner (amplifier) features advanced functionality and built-in digitization to provide you with a powerful and flexible system. Connect to your PC and start collecting data straight out of the box.

Learn More

System Information

AMTI's industrial sensors can be paired with optional components to create a complete system.

GEN-5 Amplifier

Advanced signal conditioner
Pairs with multi-axis sensors or legacy plates
USB 2.0 digital or analog outputs

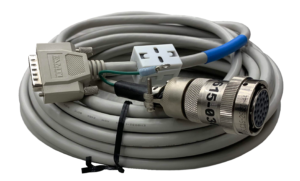

Transducer Cable

30 ft. standard length
Connects amplifier to force sensor
Data transfer and power supply

NetForce

Basic data acquisition software
Compatible with AMTI force plates & sensors
Export to .bsf or text file for post-processing

Specifications & Details

Review detailed force transducer specifications and model versions below.

General Specifications

Dimensions 813 x 813 x 241 mm
Weight 255 kg
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 50k

Dimensions 32 x 32 x 9.5 in
Weight 560 lb
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 50k

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available capacity models for this force sensor

Model Name Suffix (Fz, lbs)	50,000
Fx, Fy Capacity (N)	111,250
Fz Capacity (N)	222,500
Mx, My Capacity (Nm)	67,790
Mz Capacity (Nm)	33,890
Fx, Fy Sensitivity (µV/V-N)	0.018
Fz Sensitivity (µV/V-N)	0.004
Mx, My Sensitivity (µV/V-Nm)	0.03
Mz Sensitivity (µV/V-Nm)	0.05
Lowest Natural Frequency* (Hz)	500

Model Name Suffix (Fz, lbs)	50,000
Fx, Fy Capacity (lb)	25,000
Fz Capacity (lb)	50,000
Mx, My Capacity (in-lb)	600,000
Mz Capacity (in-lb)	300,000
Fx, Fy Sensitivity (µV/V-lb)	0.08
Fz Sensitivity (µV/V-lb)	0.016
Mx, My Sensitivity (µV/V-in-lb)	0.003
Mz Sensitivity (µV/V-in-lb)	0.006
Lowest Natural Frequency* (Hz)	500

*The listed natural frequency is the lowest natural frequency for the force sensor and will dominate.

Technical Drawings

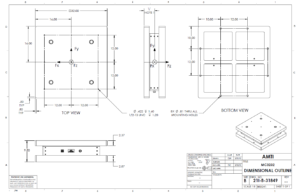

MC3232 Outline Drawing
