MC5

The MC5 is the ideal mid-range multicomponent transducer providing up to six output channels for X, Y, and Z directional forces and moments. This precision instrument features a high stiffness, low crosstalk, excellent repeatability and high sensitivity. Built with high strength aluminum, its internal sealing and anodized finish provides internal protection and resistance to exterior corrosion.

Request a Quote

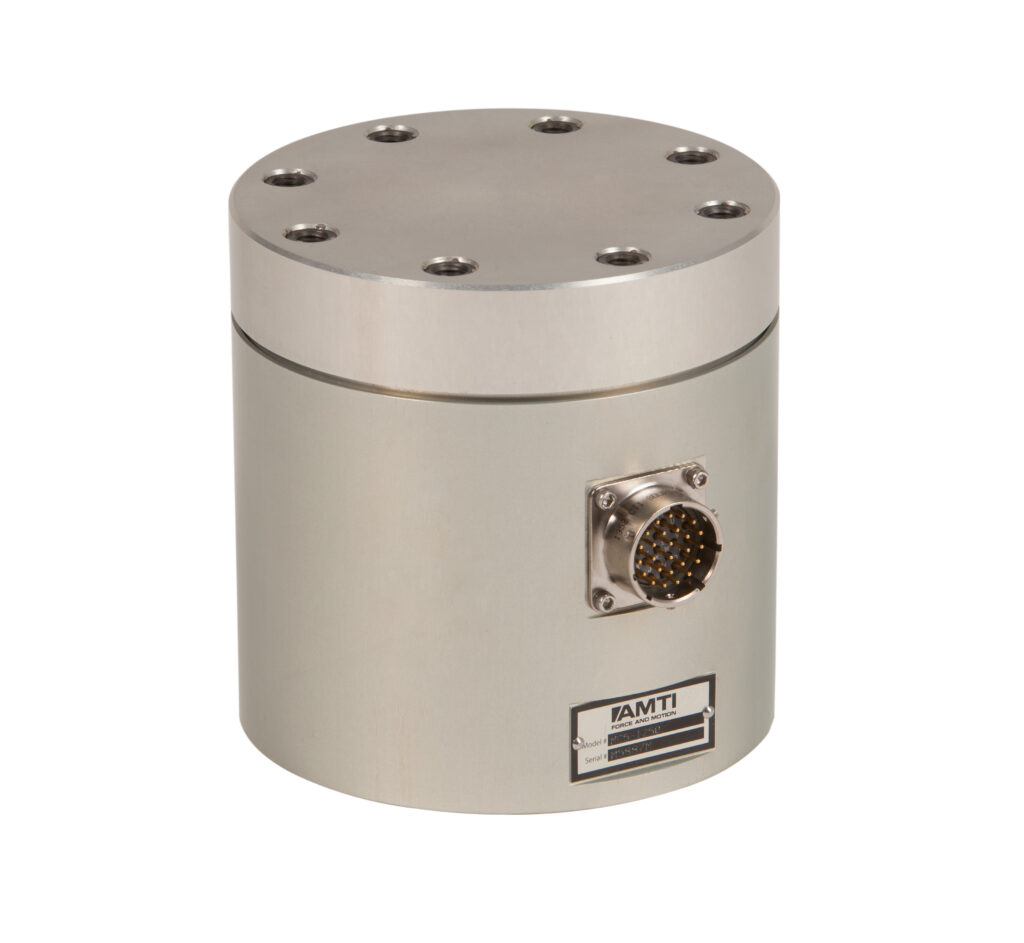

The cylindrical MC5 has a 5 in. diameter, with top and bottom mounting surfaces equipped with threaded inserts. It’s available in 4 different vertical force capacities, ranging from 1,250 lb up to 10,000 lb (see Specifications Tables). The transducer construction consists of a single cylindrical strain element, featuring elastomeric O-ring seals and coated wiring to ensure reliable performance and long lasting use.

See the Specifications Tables below for more details.

Complete your system with our state-of-the-art Gen-5 amplifier

AMTI's Gen-5 signal conditioner (amplifier) features advanced functionality and built-in digitization to provide you with a powerful and flexible system. Connect to your PC and start collecting data straight out of the box.

Learn More

System Information

AMTI's industrial sensors can be paired with optional components to create a complete system.

GEN-5 Amplifier

Advanced signal conditioner
Pairs with multi-axis sensors or legacy plates
USB 2.0 digital or analog outputs

Transducer Cable

30 ft. standard length
Connects amplifier to force sensor
Data transfer and power supply

NetForce

Basic data acquisition software
Compatible with AMTI force plates & sensors
Export to .bsf or text file for post-processing

Specifications & Details

Review detailed force transducer specifications and model versions below.

General Specifications

Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 1250, 2500, 5000, 10000

Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 1250, 2500, 5000, 10000

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available capacity models for this force sensor

Model Name Suffix (Fz, lbs)	1250	2500	5000	10000
Fx, Fy Capacity (N)	2780	5560	11130	22250
Fz Capacity (N)	5560	11130	22250	44500
Mx, My Capacity (Nm)	200	410	810	1630
Mz Capacity (Nm)	140	280	560	1130
Fx, Fy Sensitivity (µV/V-N)	0.90	0.45	0.22	0.11
Fz Sensitivity (µV/V-N)	0.22	0.11	0.056	0.028
Mx, My Sensitivity (µV/V-Nm)	20	1.0	0.50	0.25
Mz Sensitivity (µV/V-Nm)	12	6.2	3.1	1.5
Lowest Natural Frequency* (Hz)	440	625	880	1250

Model Name Suffix (Fz, lbs)	1250	2500	5000	10000
Fx, Fy Capacity (lb)	625	1250	2500	5000
Fz Capacity (lb)	1250	2500	5000	10000
Mx, My Capacity (in-lb)	1800	3600	7200	14400
Mz Capacity (in-lb)	1250	2500	5000	10000
Fx, Fy Sensitivity (µV/V-lb)	4	2	1	0.5
Fz Sensitivity (µV/V-lb)	1	0.5	0.25	0.125
Mx, My Sensitivity (µV/V-in-lb)	2.3	0.115	0.057	0.0285
Mz Sensitivity (µV/V-in-lb)	1.4	0.7	0.35	0.175
Lowest Natural Frequency* (Hz)	440	625	880	1250

*The listed natural frequency is the lowest natural frequency for the force sensor and will dominate.
Specifications subject to change without notice.

Technical Drawings

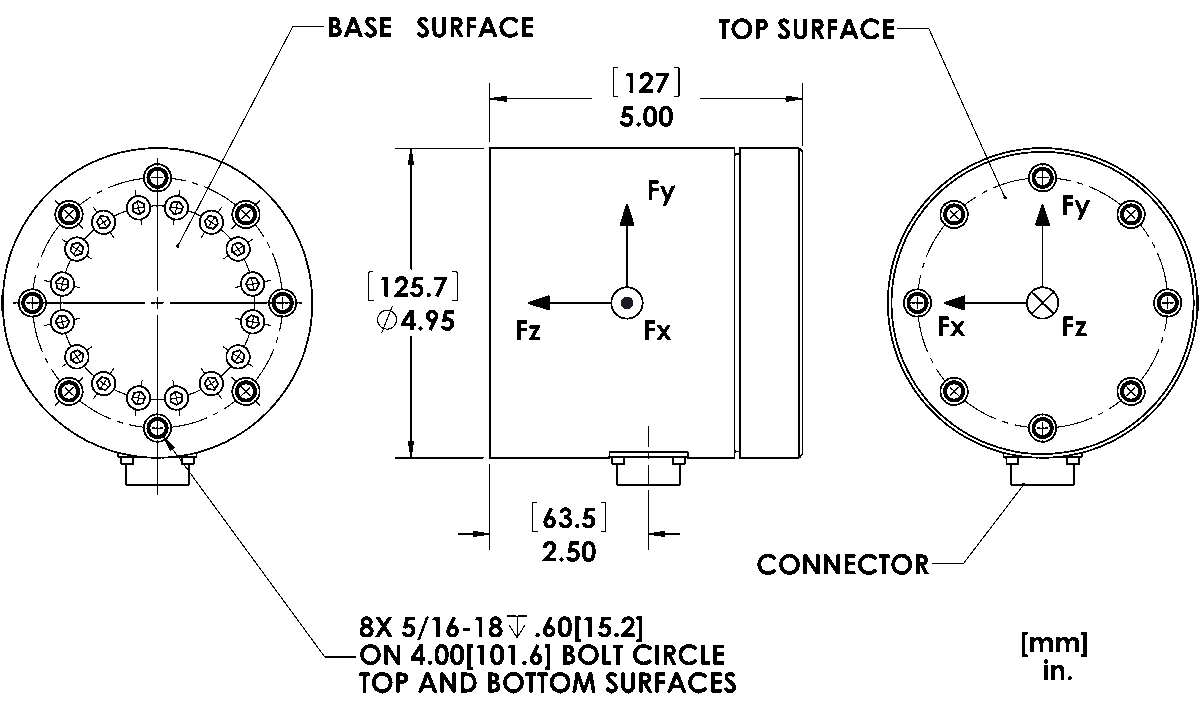

MC5 Outline Drawing
