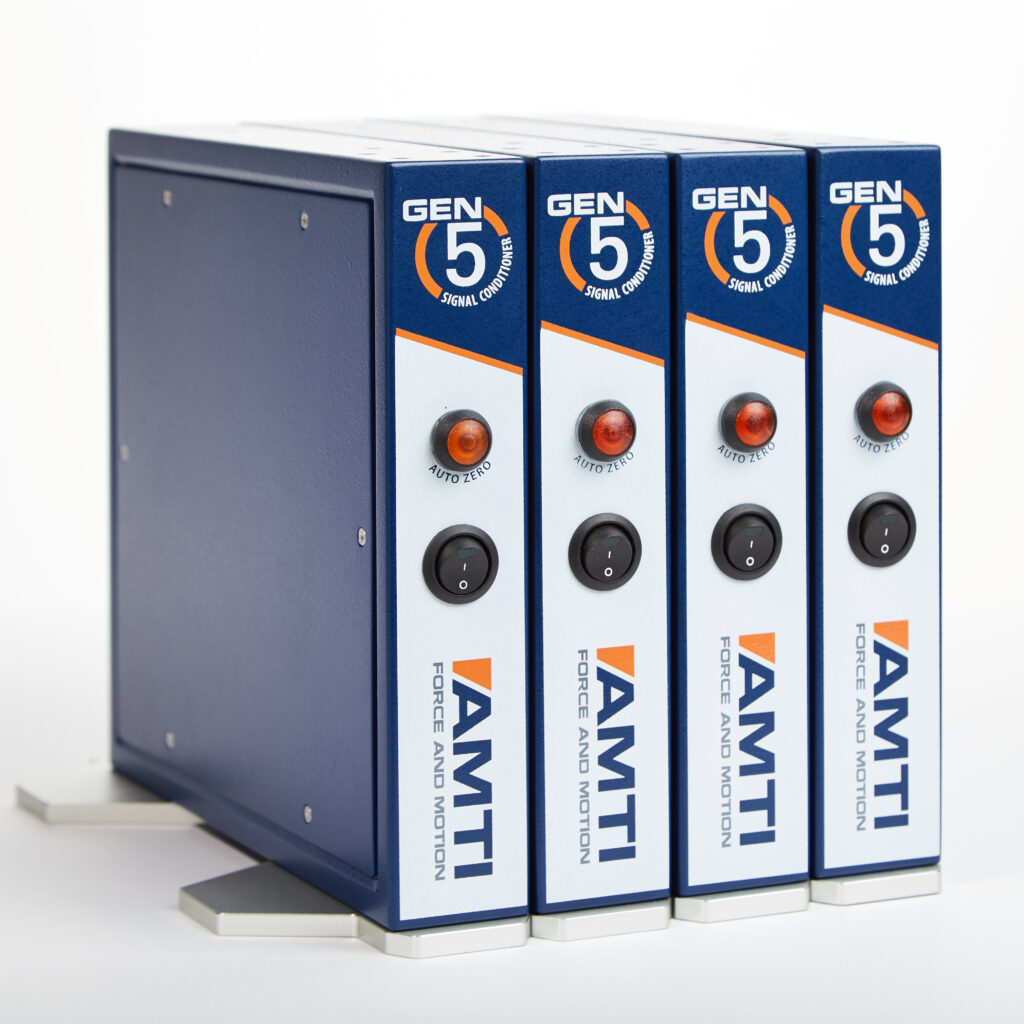

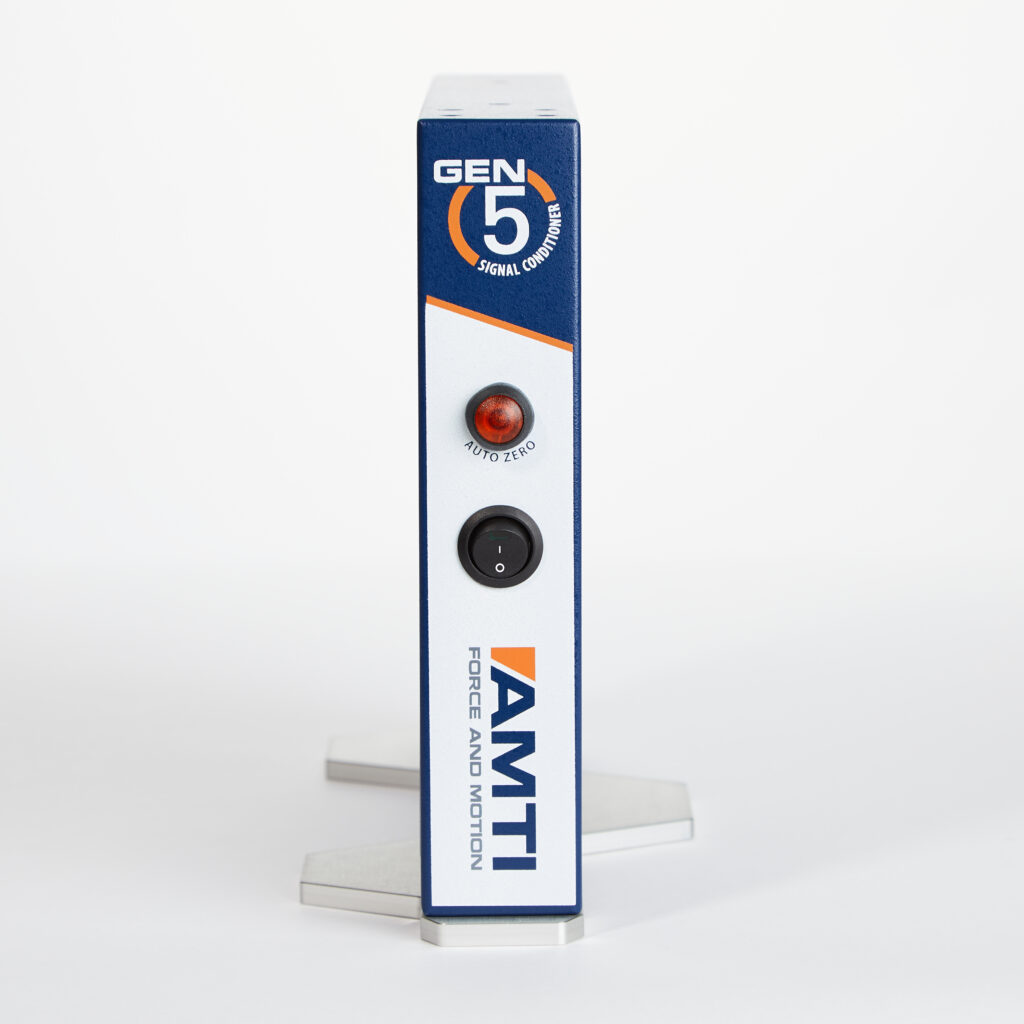

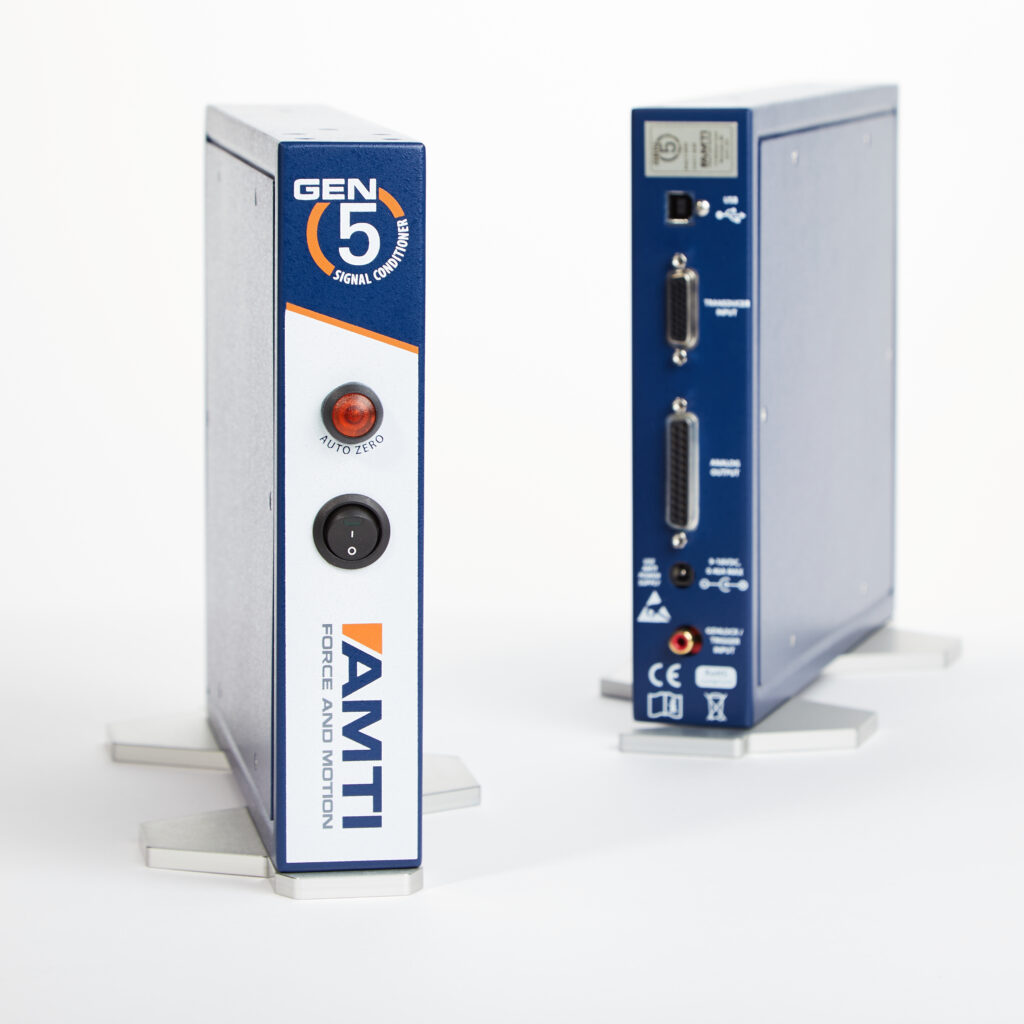

GEN-5 Amplifier

Signal Conditioner

The GEN-5 amplifier (or signal conditioner) delivers industry-leading performance and innovative features in an easy-to-use and cost effective package. It is optimized for use with any of AMTI’s multi-axis Industrial Sensors and most legacy AMTI force platforms as an upgrade from our previous MSA-6 amplifier.

AMTI’s GEN-5 amplifier provides both a digital (USB) output for direct connection to your PC, and a 6-channel analog output if a third-party data acquisition system is preferred. To facilitate setup, the amplifier automatically reads and uploads complete transducer profile information stored onboard all AMTI smart force platforms and force sensors, including bridge resistance, transducer capacity, and the calibration matrix.

See the below for more details.

State-of-the-art signal conditioning

AMTI’s GEN-5 amplifier provides six independently configurable data channels in a fully-calibrated, NIST-traceable and cost-effective package.

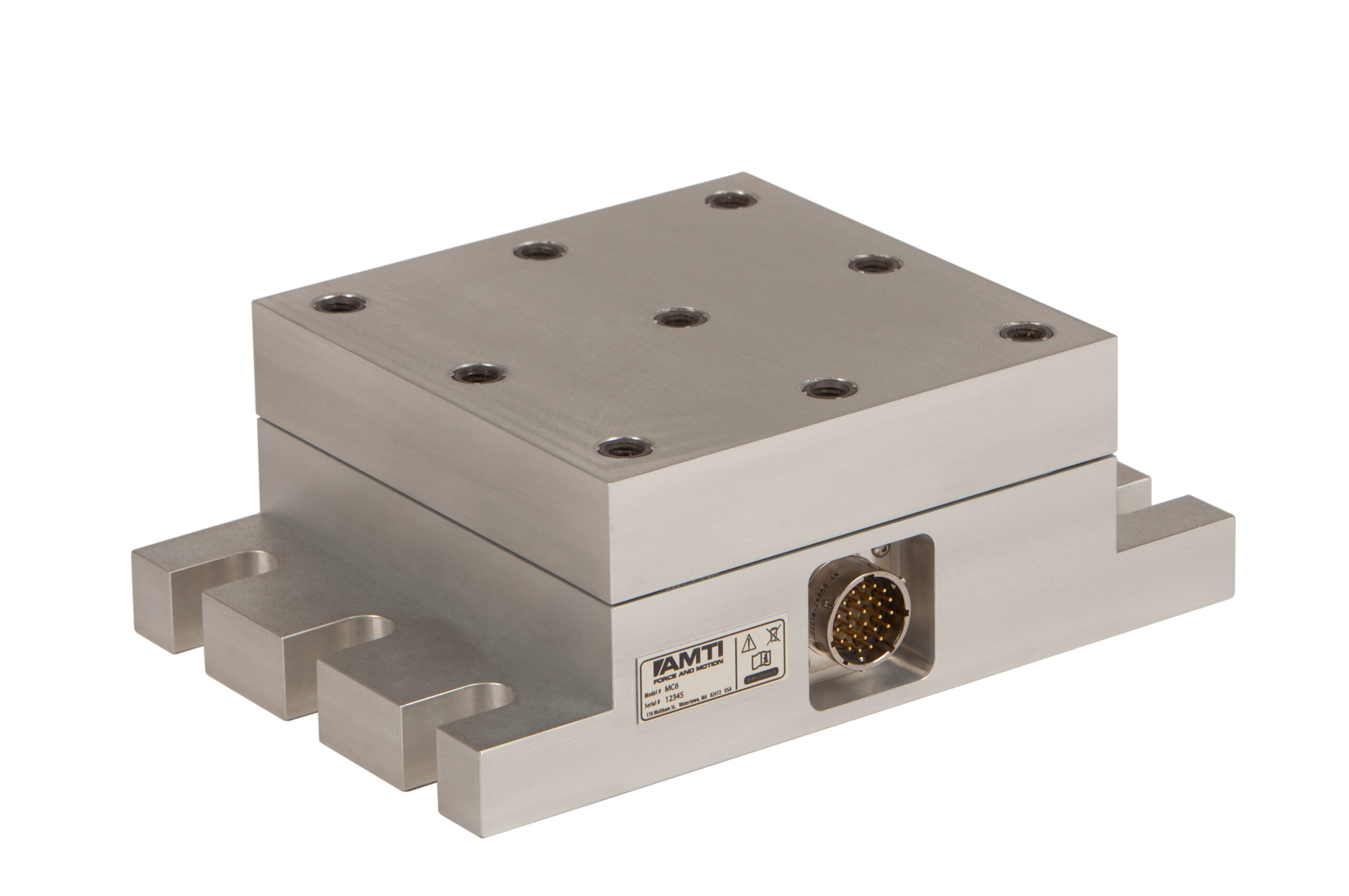

Explore our Industrial Sensors
System Information
The GEN-5 amplifier can be paired with any of our Industrial Sensors and most legacy force platforms. Each amplifier includes a USB 2.0 digital output cable and power supply. *Analog output cables available upon request.

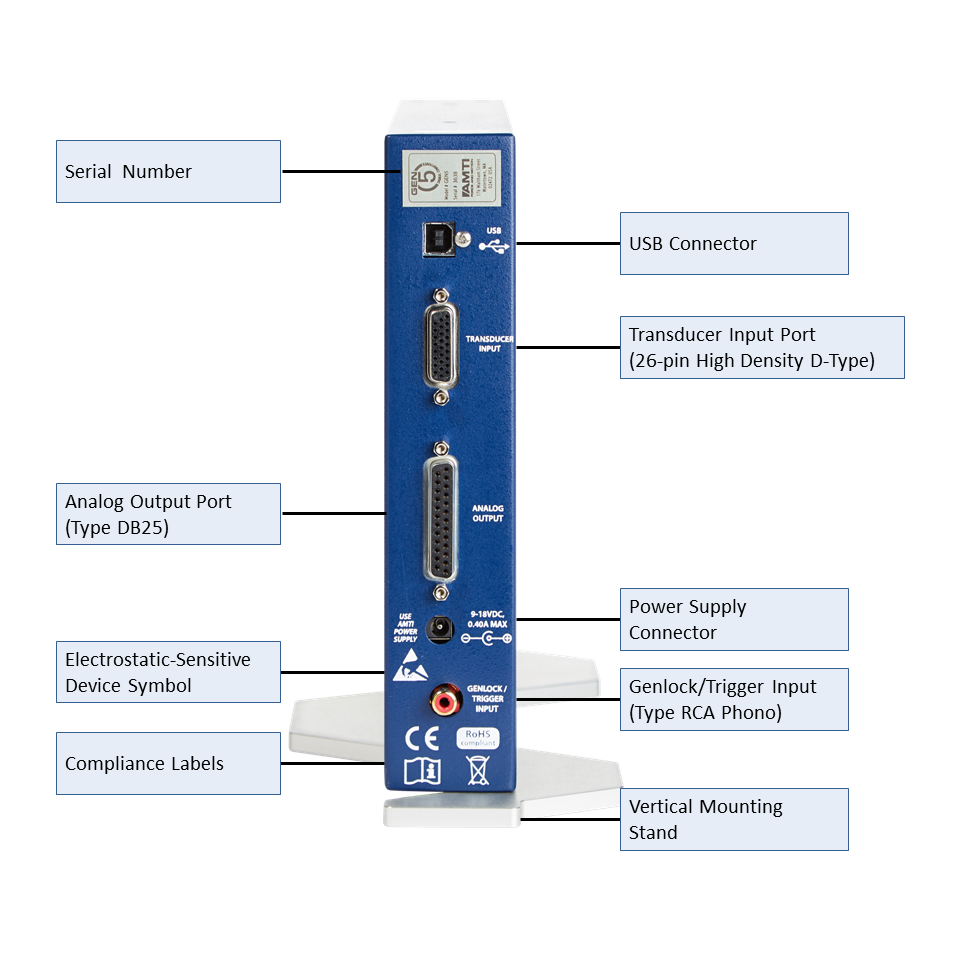

Digital & Analog Outputs

  • USB 2.0 output cable included
  • 6-channel analog output to BNC or stripped wire available upon request

Power Supply

  • 15 VDC, 1.2 A
  • Requires access to standard 120-240 VAC, 50/60 Hz power

Synchronization Input

  • Facilitates synchronization with third-party systems
  • Supports both Genlock and external triggering

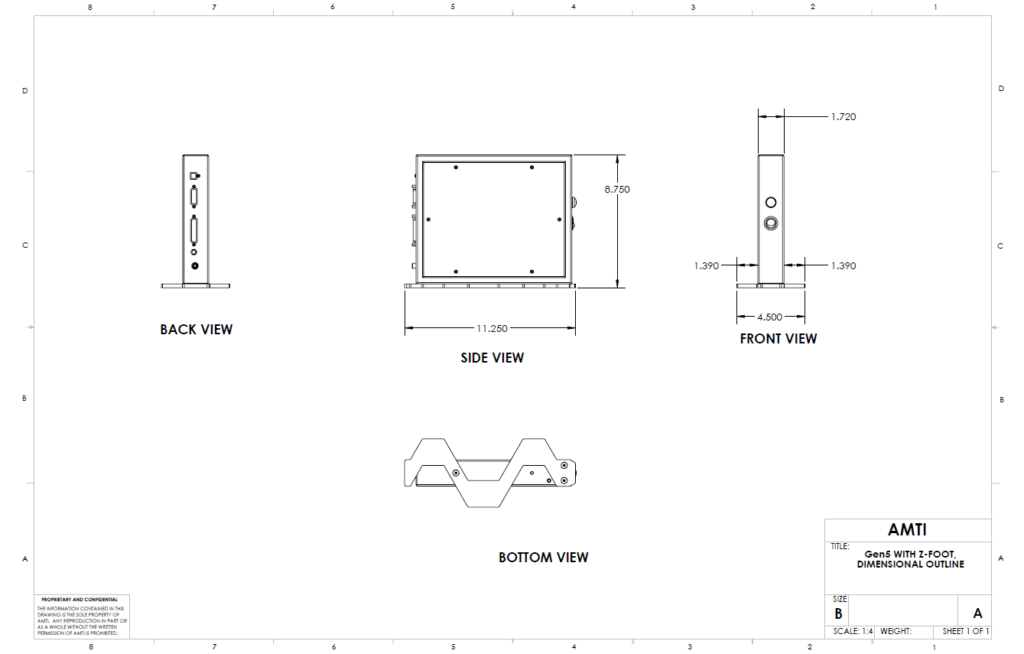

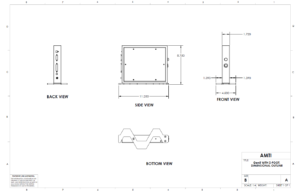

Specifications & Details

Review detailed amplifier specifications below.
