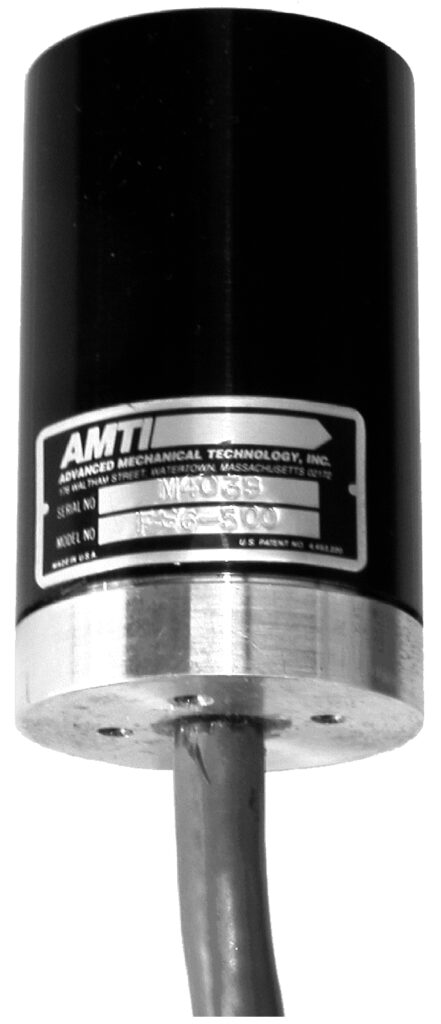

FS6

Engineered for precise measurement of forces and moments along the X, Y, and Z axes, the FS6 is a 6-channel fixator sensor designed to conveniently mount between two load elements. Both the top and bottom surfaces of the sensor have threaded holes as attachment points. The body of this transducer is manufactured from a high strength aluminum alloy for superior durability. Complete with an anodized finish to withstand harsh environments, the FS6 is ideal for a variety of testing conditions.

Request a Quote

Measuring 2.5 x 1.5 in., the FS6 is available in 100 lb, 250 lb, and 500 lb vertical force capacities (see Specifications Tables). Its high stiffness, high sensitivity, and low cross-talk yield excellent repeatability and stability for long term use. Common applications of this sensor include robotics, ergonomics, and industrial developmental research.

See the Specifications Tables below for more details.

Complete your system with our state-of-the-art Gen-5 amplifier

AMTI's Gen-5 signal conditioner (amplifier) features advanced functionality and built-in digitization to provide you with a powerful and flexible system. Connect to your PC and start collecting data straight out of the box.

Learn More

System Information

AMTI's industrial sensors can be paired with optional components to create a complete system.

GEN-5 Amplifier

Advanced signal conditioner
Pairs with multi-axis sensors or legacy plates
USB 2.0 digital or analog outputs

Transducer Cable

30 ft. standard length
Connects amplifier to force sensor
Data transfer and power supply

NetForce

Basic data acquisition software
Compatible with AMTI force plates & sensors
Export to .bsf or text file for post-processing

Specifications & Details

Review detailed force transducer specifications and model versions below.

General Specifications

Dimensions 64 x 38 mm (H x Dia)
Weight 0.1 kg
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP50
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 100, 250, 500

Dimensions 2.5 x 1.5 in (H x Dia)
Weight 0.22 lb
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Aluminum
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
IP Rating IP50
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 100, 250, 500

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available capacity models for this force sensor

Model Name Suffix (Fz, lbs)	100	250	500
Fx, Fy Capacity (N)	225	555	1115
Fz Capacity (N)	445	1115	2225
Mx, My Capacity (Nm)	11	28	56
Mz Capacity (Nm)	5.6	14	28
Fx, Fy Sensitivity (µV/V-N)	5.4	2.16	1.08
Fz Sensitivity (µV/V-N)	1.35	0.54	0.27
Mx, My Sensitivity (µV/V-Nm)	266	106	53
Mz Sensitivity (µV/V-Nm)	212	85	42

Model Name Suffix (Fz, lbs)	100	250	500
Fx, Fy Capacity (lb)	50	125	250
Fz Capacity (lb)	100	250	500
Mx, My Capacity (in-lb)	100	250	500
Mz Capacity (in-lb)	50	125	250
Fx, Fy Sensitivity (µV/V-lb)	24	9.6	4.8
Fz Sensitivity (µV/V-lb)	6	2.4	1.2
Mx, My Sensitivity (µV/V-in-lb)	30	12	6
Mz Sensitivity (µV/V-in-lb)	24	9.6	4.8

*The listed natural frequency is the lowest natural frequency for the force sensor and will dominate.

Technical Drawings

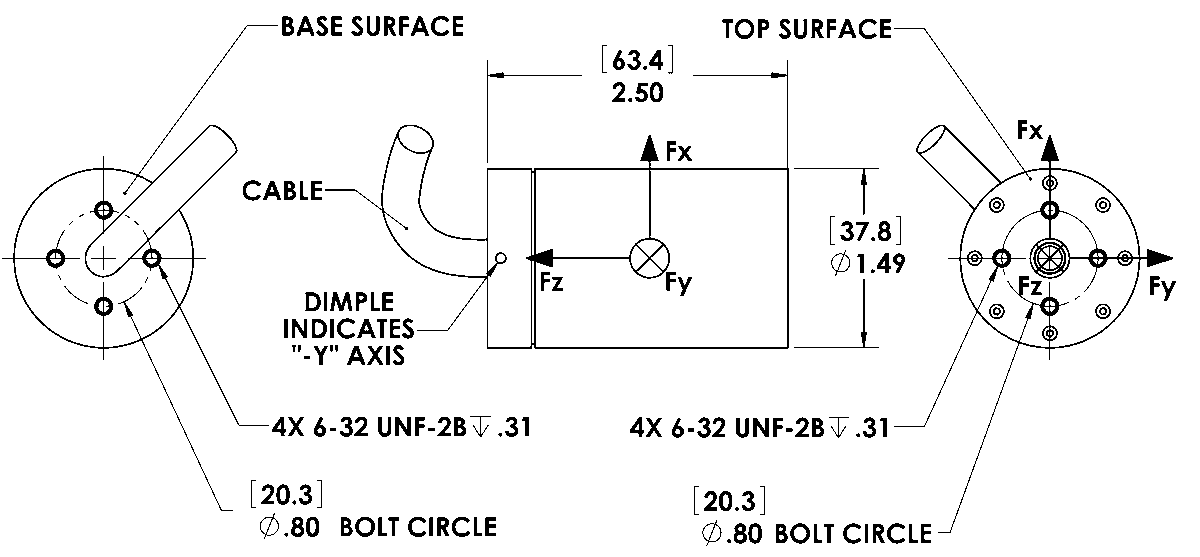

FS6 Outline Drawing
